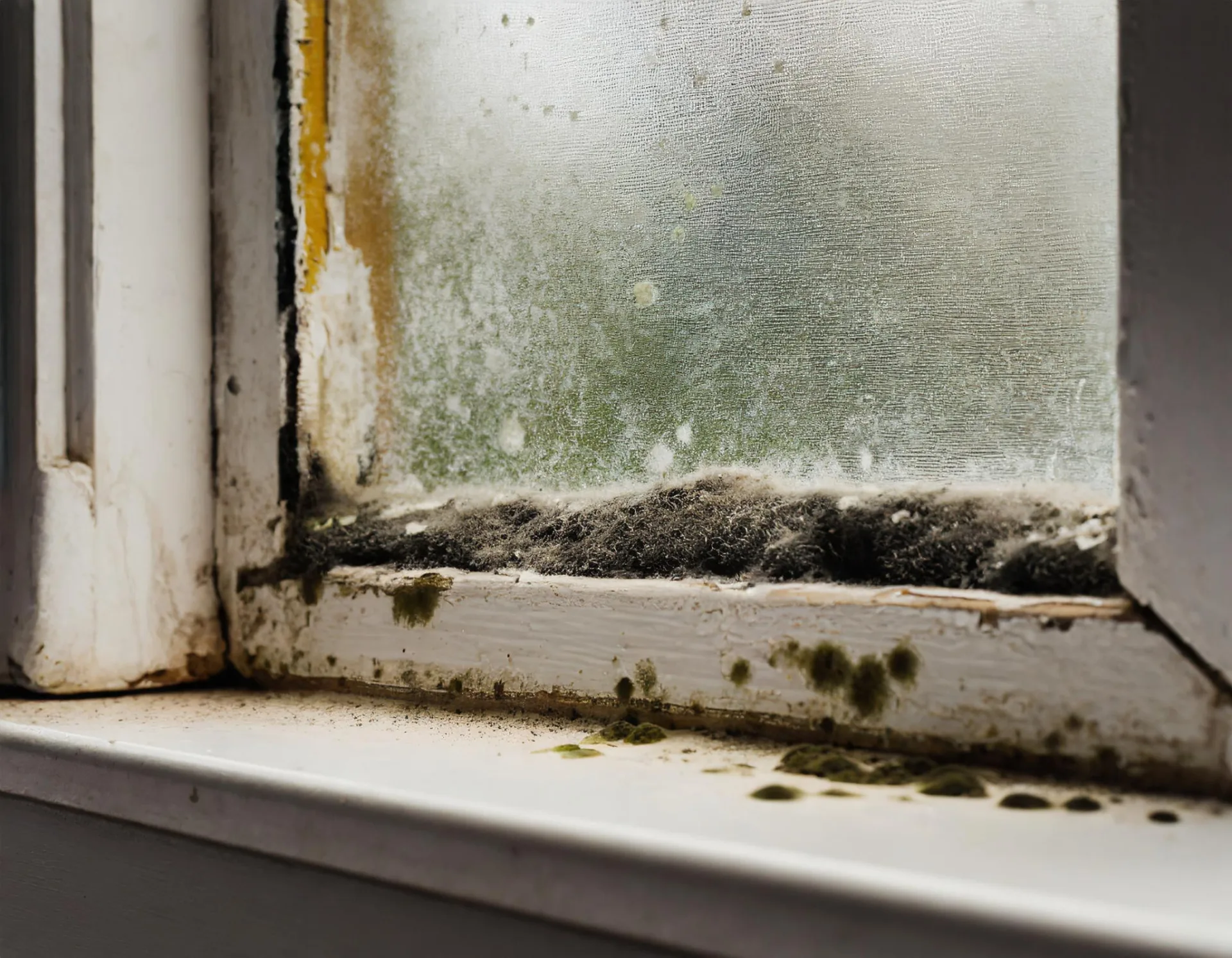

Mould on window frame

Understanding Domestic Mould Damage using Thermal Imaging

Mould on a bedroom wall is easy to see and easy to wipe away. It is also very good at coming back, often to exactly the same corner, the same window reveal or the same strip of wall behind the wardrobe. That return is the clue. Mould grows where a surface stays damp, and in most homes without a leak the surface stays damp because it is cold.

Much of the mould found in homes is condensation mould. Warm, moist room air meets a surface colder than its dew point, water forms on that surface, and if it happens often enough the mould spores that are always present in the air take hold. Bleach, mould-resistant paint and fresh sealant treat the surface, but they change neither the temperature of the wall nor the moisture in the room, so the conditions that grew the first patch are still waiting for the next one. Clean the patch and the cold is still there, and so is the moisture that found it. Those conditions are at their strongest in the heating season, when homes are closed up, windows stay shut and the outside walls are at their coldest.

This post is for homeowners, tenants and landlords who want to understand why mould keeps returning before deciding what to do about it. It explains how mould damage follows cold surfaces, what a thermal image of a mouldy room actually shows, and why the cause is usually found in the wall rather than in the mould. It also sets out how a survey measures the problem, and what the certified report gives you to act on.

Thermography Services (UK)

Certified Master Thermographer Level 3

Get your no-obligation quotation.

Page Summary

  • Most domestic mould grows where a surface stays damp, and in most homes without a leak that is because the surface is cold.
  • Condensation forms on any surface colder than the dew point of the room air, and the margins are often only a few degrees.
  • A thermal image usually shows condensation mould sitting on the coldest part of the wall.
  • Measuring room temperature and humidity lets every surface be compared with the dew point, which separates condensation from other causes.
  • Every report is written and certified by our Level 3 thermographer.

Understanding Domestic Mould Damage Using Thermal Imaging

Mould is the symptom; a cold surface and moist air are usually the cause.

Thermal image of the same corner, coldest exactly where the mould grows, showing the surface behind the damage

Why Mould Follows Cold Surfaces

Mould is a moisture problem on a surface

Mould needs moisture, a surface to grow on and time. The spores are already in the air of every home; what decides whether they grow is whether a surface stays damp for long enough. In a home without a leak, the most common source of that dampness is condensation, the water that forms when room air meets a surface colder than its dew point.

Warm air, cold walls and the dew point

Air holds water as vapour, and warm air holds more than cold air. Cooking, washing, bathing, drying clothes indoors and simply breathing add vapour to a home every day. The dew point is the temperature at which the air can hold no more, so any surface colder than the dew point collects water.

A worked example shows how small the margins are. Room air at 20 °C and 60% relative humidity has a dew point of about 12 °C. A wall surface at 15 °C stays dry. A corner at 11 °C, a few degrees colder than the wall beside it, collects water every time the room reaches those conditions. Raise the humidity to 70%, after a shower or a load of washing dried on a radiator, and the dew point climbs to about 14 °C, so even the 15 °C wall is close to the line.

Nothing about that corner looks different to the eye. The difference is entirely in its temperature.

Where homes run cold

Condensation mould has favourite places, and every one of them is a cold surface:

  • External corners, where two outside walls lose heat in two directions at once.
  • The junction of an outside wall and the ceiling, especially below the eaves, where loft insulation can stop short of the wall.
  • Window reveals and the wall around frames and lintels, which bridge from inside to outside.
  • Walls behind wardrobes, beds and sofas set against an outside wall, where warm room air cannot reach.
  • Patches where insulation is missing, thin or has slumped.
  • Rooms that are rarely heated, or heated only briefly, such as spare bedrooms.

Each is a thermal bridge, a gap in the insulation or a surface starved of warmth. A thermal camera shows them all at once.

What a thermal image of a mouldy room shows

A calibrated radiometric thermal camera records the surface temperature of everything in view. In a room with condensation mould, the image usually shows the mould sitting on the coldest part of the wall: a cool band along the ceiling line, a cold triangle in a corner, a cool frame around a window. The pattern explains the damage. Where the mould and the cold coincide, the evidence is consistent with condensation; where they do not, something else is likely to be going on.

The camera alone does not give the answer. The air temperature and humidity are measured in each room so that the dew point can be calculated, and every surface temperature in the image is compared against it. That comparison is the heart of the analysis: how close each surface comes to the dew point, and why it is that cold.

Two levers, not one

Condensation is a balance between how much moisture is in the air and how cold the surfaces are. That is why mould can appear in a home that never had it before, after a change in how the home is heated, ventilated or used, and why the same flat can be dry for one household and mouldy for the next. A survey reports on both sides of the balance: the room conditions measured on the day, and the surfaces that fall close to or below the dew point under them. Findings identify the likely cause and where to look; the choice of any remedy is for the owner, the landlord or their builder.

When mould is not condensation

Not all mould starts with condensation. Water coming in through a roof, a gutter, a failed seal or a wall, or escaping from a pipe, can also keep a surface damp, and the pattern then follows the source rather than the cold. Wet materials often read cooler because evaporation takes heat away, so a cool patch on its own does not say which is which. The room readings and the visual record do: a surface comfortably above the dew point cannot be wet from condensation, so dampness there is consistent with another source. Moisture ingress is a different investigation, covered in our post on detecting damp and moisture infiltration with thermal imaging.

Getting the timing right

Condensation is a cold-weather problem, and so is its evidence. The survey works best in the heating season, with the heating running normally, so that the cold surfaces show at their coldest. Our method looks for a difference of at least 10 °C between inside and outside, held for 12 hours before the survey, and the conditions on the day are written down, because a single visit records a single set of conditions.

From mould to a report

A damp and mould survey turns the pattern into evidence. Every report is written and certified by our Level 3 thermographer, room by room, with thermal and visual images side by side, the dew point and surface readings, what each pattern is consistent with, what else could explain it and the limitations. For a homeowner, it explains why the mould keeps coming back. For a social landlord in England, a thermographic survey is one way to evidence a damp and mould investigation under Awaab’s Law.

BS EN ISO 6781-1:2023

Surfaces and Dew Point

BS EN ISO 6781-1:2023, Performance of buildings. Detection of heat, air and moisture irregularities in buildings by infrared methods. Part 1: General procedures, is the current standard for thermal imaging of building envelopes, and its title names moisture alongside heat and air. Condensation work sits naturally inside it: the camera finds the surface temperature irregularities, and the room conditions explain which of them matter for moisture.

Our building surveys are aligned with it. The conditions are recorded, reference temperatures are captured for every set of images, and each irregularity is reported with what it is consistent with and what else could explain it. The method is qualitative and comparative: it shows where a surface is colder than it should be and why that matters, rather than measuring the properties of the wall itself.

Thermography Surveys Detecting Damp and Mould Risk
Get in Touch

Find the Cause of Mould

Mould that keeps coming back is telling you something about the wall it grows on. Tell us about the home, which rooms are affected, where the mould appears and how long it has been returning, and we will come back with a proposal for a thermographic survey with dew point analysis. Every survey is scoped to the property and the question you need answered, and every report is written and certified by our Level 3 thermographer.
