~ Summary ~
We delivered Level 3 thermal imaging reports for three multi-storey buildings based on drone data collected by the client under our written protocol. Findings included minor glazing heat loss, thermal bridging at mullions, and potential roof moisture. The reports demonstrated strong envelope performance and clear, qualified conclusions. Our thermography analysis service helps L1 teams and drone operators collect data safely while we deliver certified reporting.
Introduction

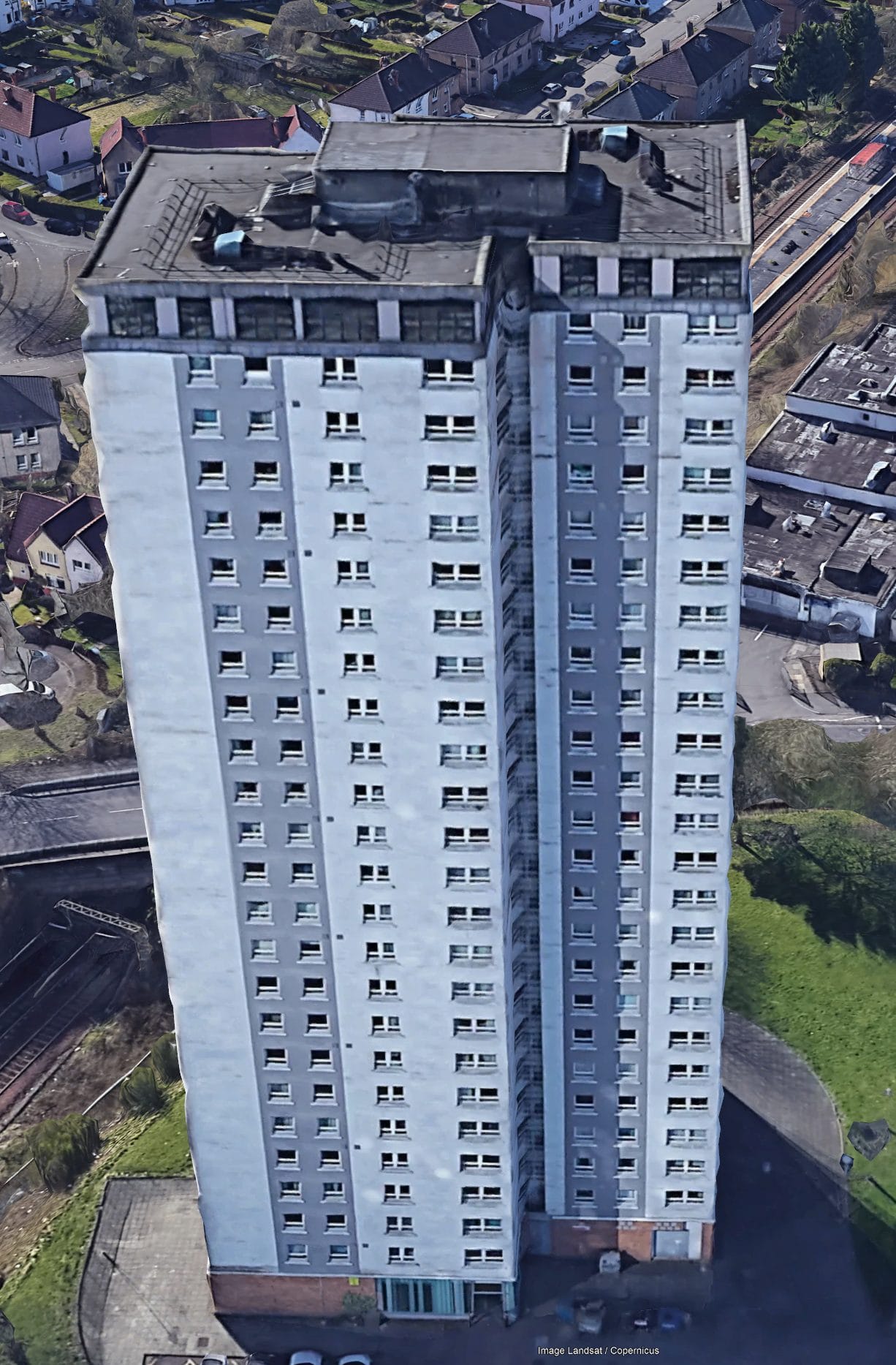

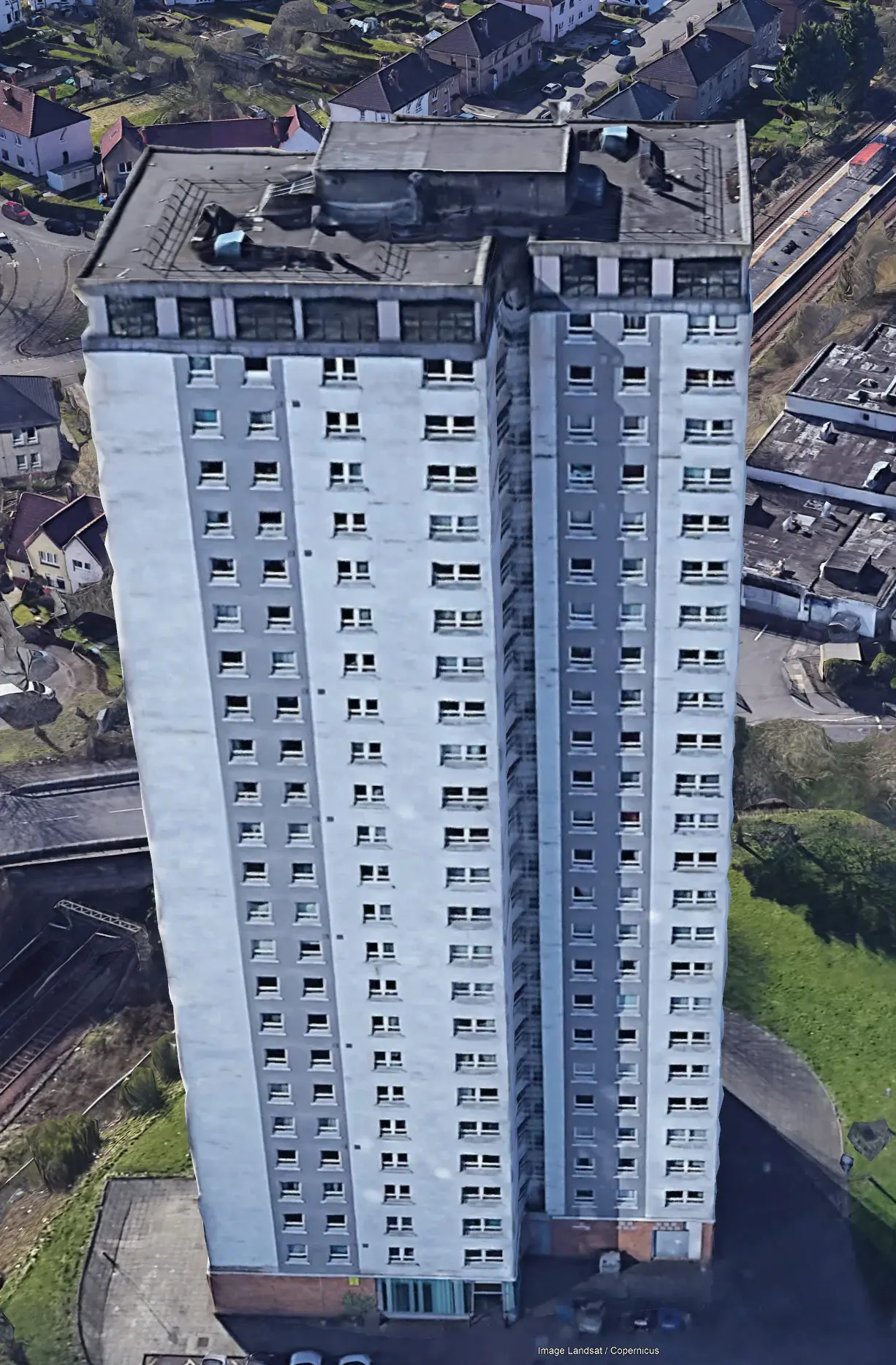

We recently completed a detailed thermal analysis project involving three multi-storey residential buildings in Glasgow. What makes this project stand out is that our Level 3 thermographic reporting services were delivered based entirely on thermal data collected by the client, using drones and radiometric thermal cameras. The data collection followed a structured protocol authored by us, allowing their team to capture images to the correct standards despite not holding a thermography certification themselves.
This collaborative approach is increasingly popular. It allows clients to capture data internally using drones or inspection contractors, while we provide the Level 3-certified interpretation, analysis, and report production required for formal submissions, compliance, or remedial planning. Our protocol ensured the client captured:
Dusk-time radiometric images
Full cardinal elevation coverage
Controlled thermal scaling (0.0°C–21.0°C)
Roof thermograms with variable range calibration
Environmental context including wind, ambient, and surface conditions
level 3 thermographer, drone thermography, thermal imaging reports, building inspection, moisture detection
How We Analysed the Building Thermography Data

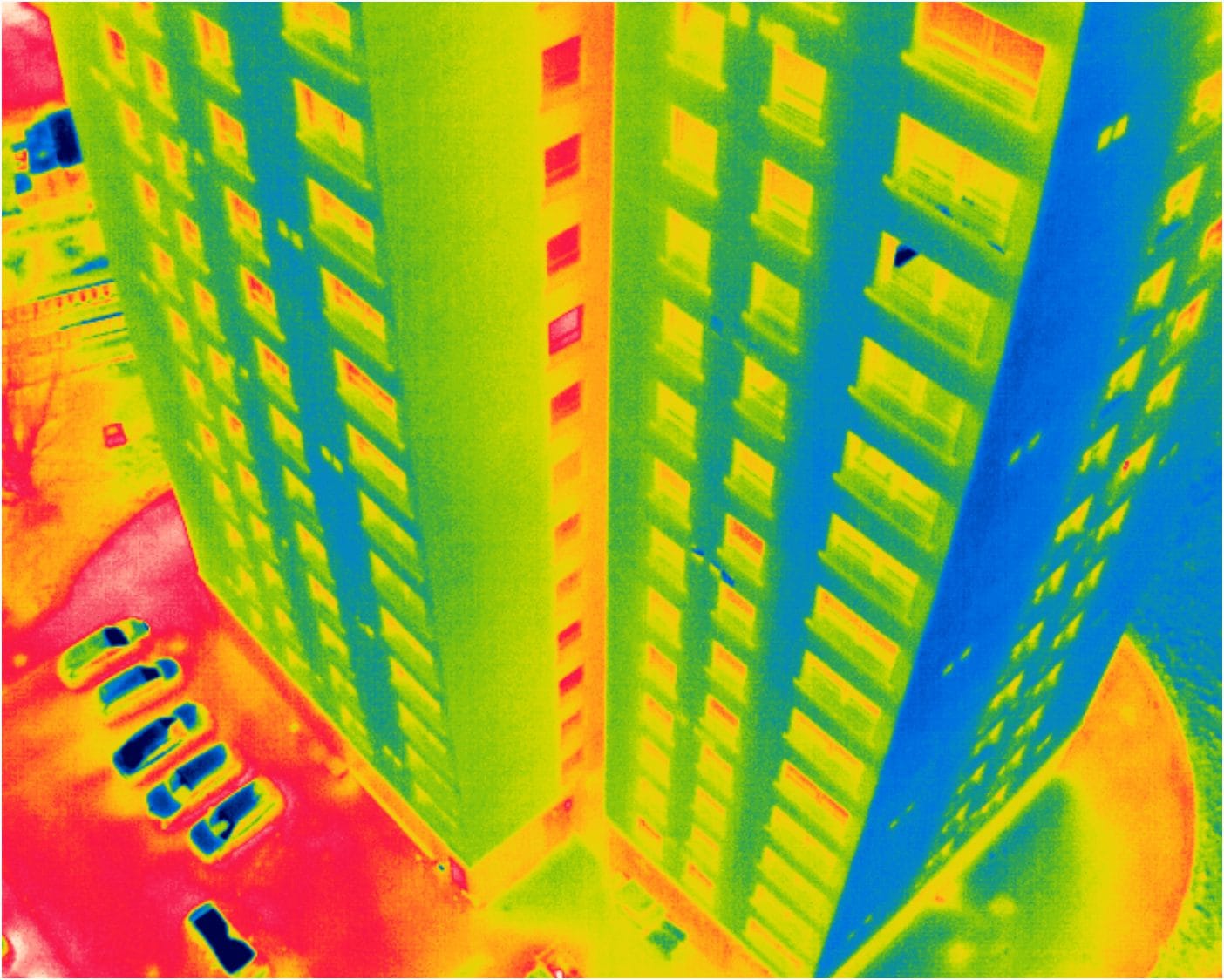

Each building featured similar construction: concrete frames with Permarock Acrylic Render System and 100mm Rockwool insulation, along with bituminous felt roofing partially covered in tiles and vegetation. All thermal data was assessed using FLIR Studio Pro, with consistent analysis applied across elevations and roofs.
Our report identified key thermal behaviours:
Crucially, we applied interpretive analysis to differentiate between normal environmental effects and potential defects, something only an experienced Level 3 thermographer can provide. Each report was structured with clear summaries, annotated thermograms, elevation-by-elevation assessments, and qualified conclusions using suggestive language appropriate for non-invasive surveys.
The Value of Our Remote Report Writing Services
This project demonstrates how we can empower clients and L1-qualified data collectors to deliver thermal imaging surveys confidently, with the assurance that the interpretation and final reporting will meet professional, insurable standards.
By developing a bespoke data collection protocol and combining it with our Level 3 thermography analysis, we helped the client:
Work With Us – Certified Level 3 Thermography
If your organisation or inspection team can collect radiometric thermal data but need expert interpretation and formal documentation, we can help. Whether you’re surveying residential façades, roofing systems, solar panels, or internal spaces, our Level 3 report writing service ensures you meet technical and legal expectations.
We’ll provide the data capture protocol, thermography standards, and comprehensive reporting, all under a qualified level 3 thermographer’s signature.
Certified Master Thermographer Level 3
